Product Description
Free Shipping
Mandrel chuck type arbor holder can be used for mounting various types of abrasives & finishing wheels such as cut-off wire brushes, buffs, non woven, etc. hold various wheels for grinding, sanding, cleaning and polishing.

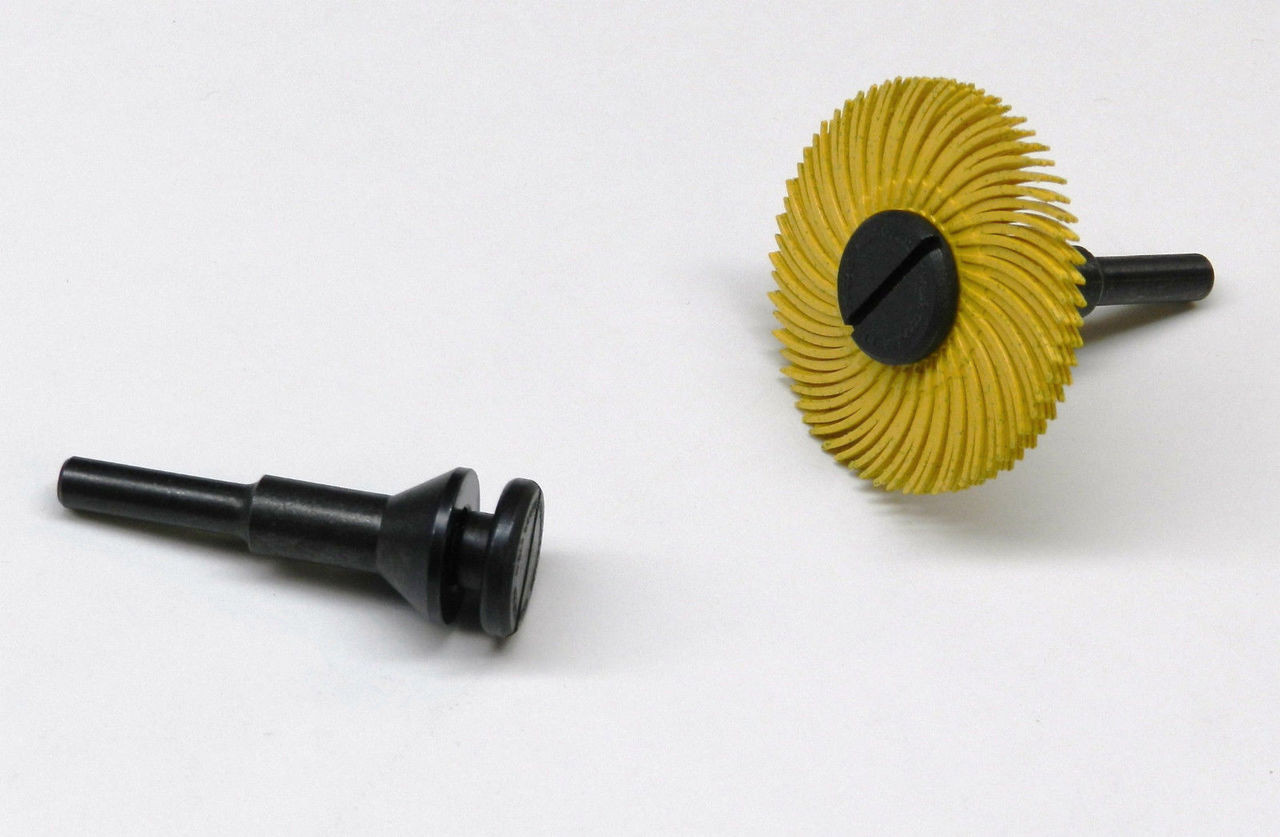

Mandrel has a shaft capacity to hold wheels with 3/8" holes, ideal for the 2" & 3" 3M Radial Bristle Brushes (as pictured).
Mandrel-Adapter can be used with a rotary power tool. Wheels are secured in place with a slotted screw, changing wheels is quick and easy. The head style is a Bell Head mandrel, the finish is in Black Oxide rust proof. Design permits better access to work areas which may be difficult to reach.
A Quality made Mandrel that is machined by CNC Equipment, to precise tolerances, made of steel and finished with a corrosion resistant protection.
Mandrel is made to hold Wheels with a 3/8" arbor hole, the shank diameter of Mandrel is 1/4".
SPECIFICATIONS: JETS Product # 1301-995
- Overall Length: 2-3/32" - 53.11mm
- Head Diameter: 3/4" - 19mm
- Head Screw: 1/4" Thread Slotted Screw (with3/8" Shoulder)
- Shank Diameter: 1/4" - 6.25mm
- Mandrel Head Style: Bell Type
- Capacity Wheel Width: 1/4" - 6.34mm
- Shank Length: 7/8" - 22.2mm
- Reinforced Shoulder Diameter: 3/8" - 9.5mm
- Screw Thread Size: 1/4" - 6.34mm
- Screw Length: 3/4" - 19mm
- Mandrel Weight: 1.2oz. - 33gr.
