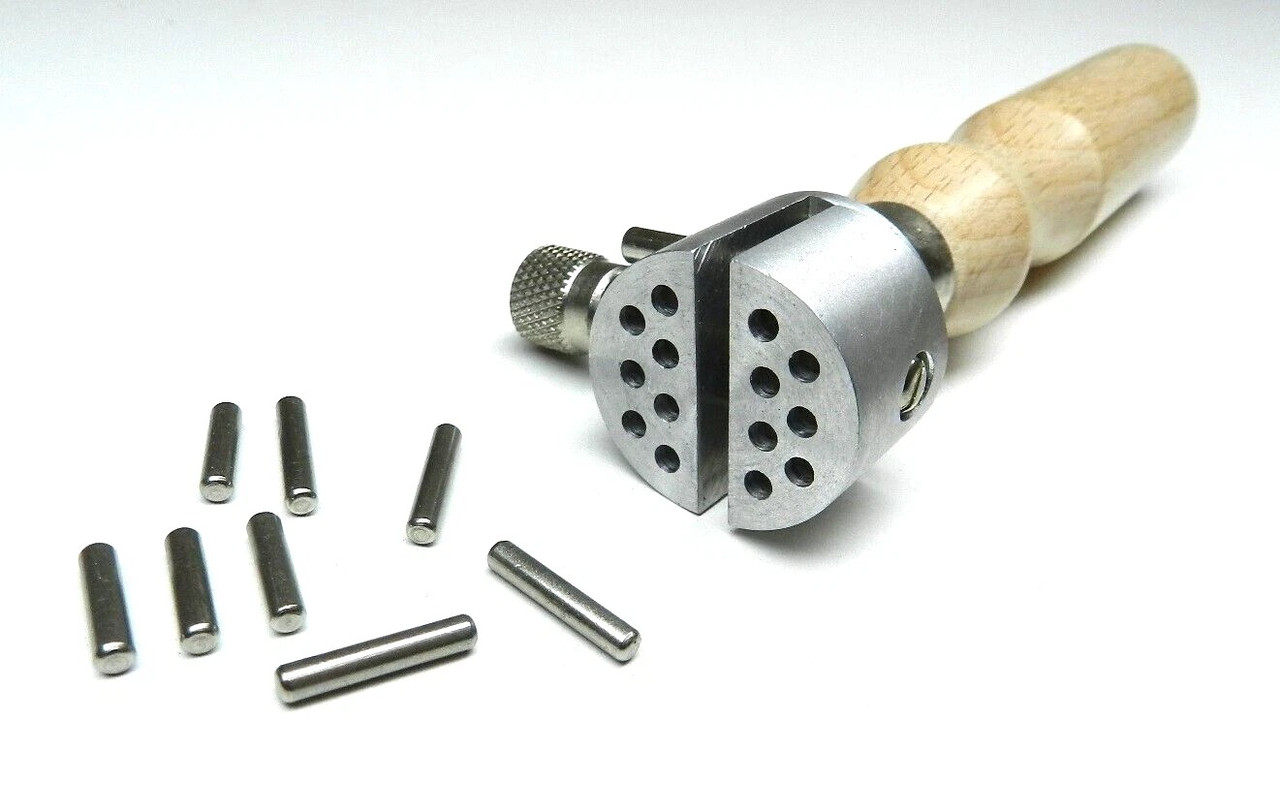

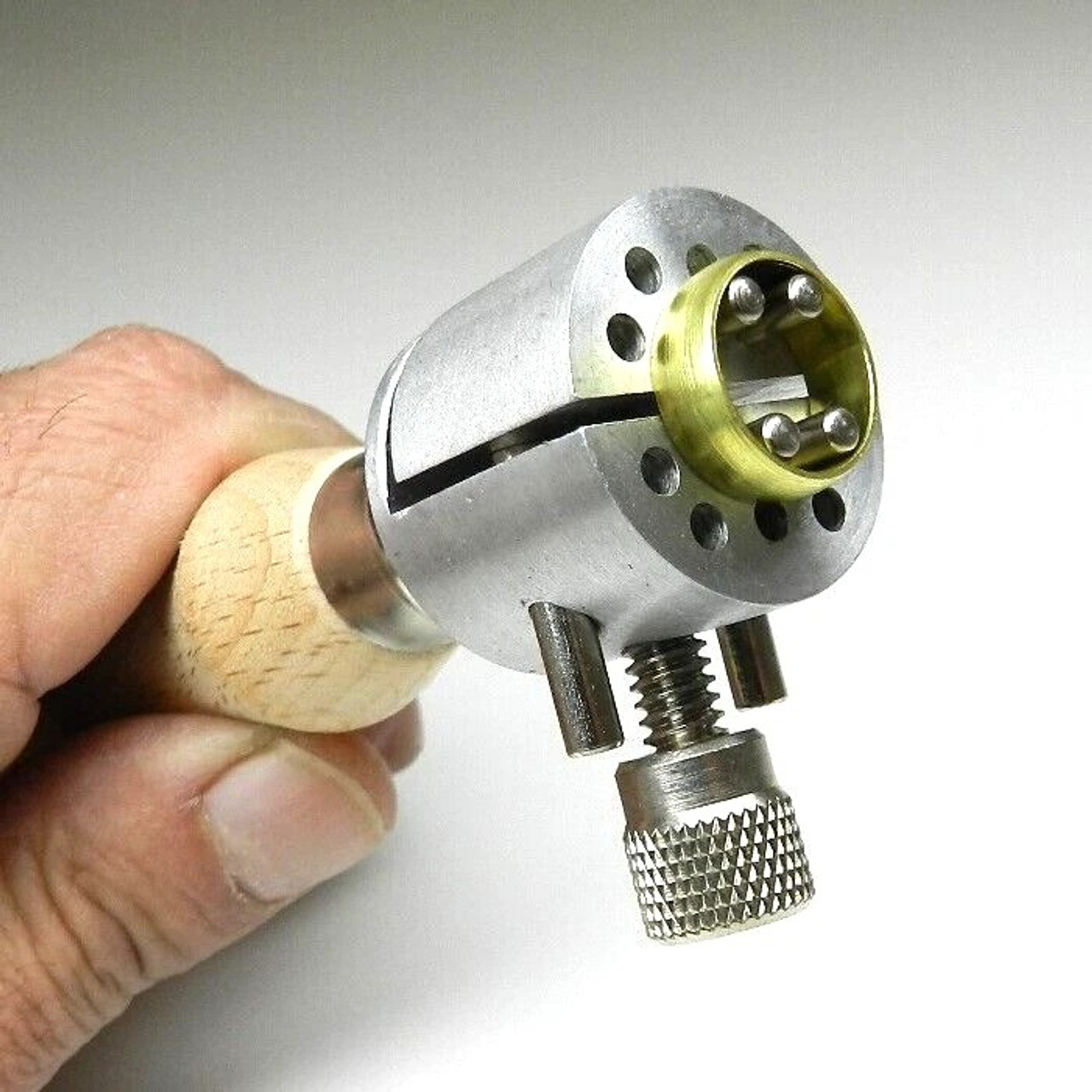

This is a Small - Mini Universal Work Holder also known as the Peg Clamp, with a 1" Diameter head, has four movable pins that accommodate large and small items during repair. The small size makes it easier to control small Hand held work holder with 4 pins to hold item in position for Engraving, Carving, Setting and Repair.

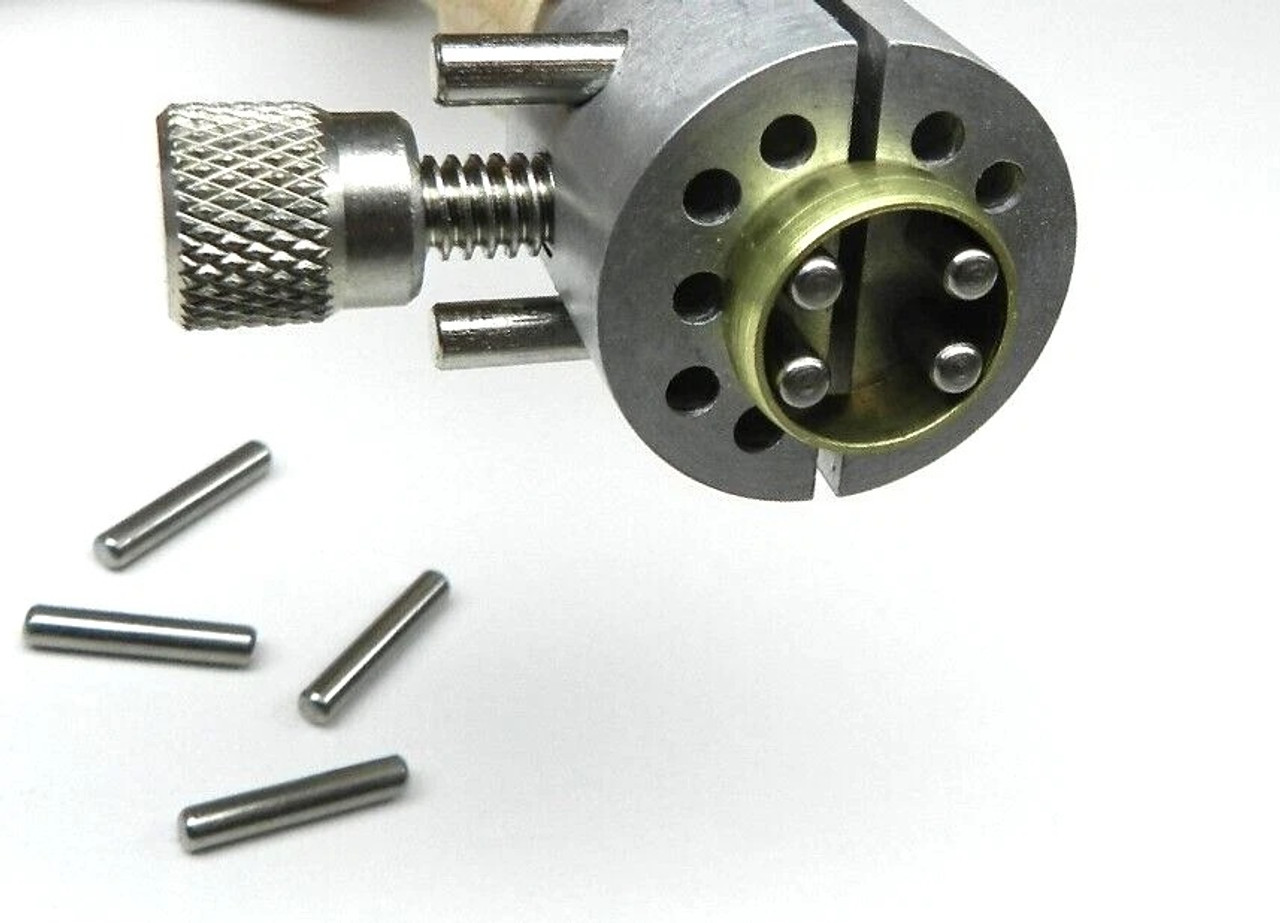

The Clamp Work surface has multiple positioning segment with holes that the 4-Pins can be positioned to hold part. The clamp opens by simply turning the knurled side screw head, the clamp opening segment has two guide pins to provide support.

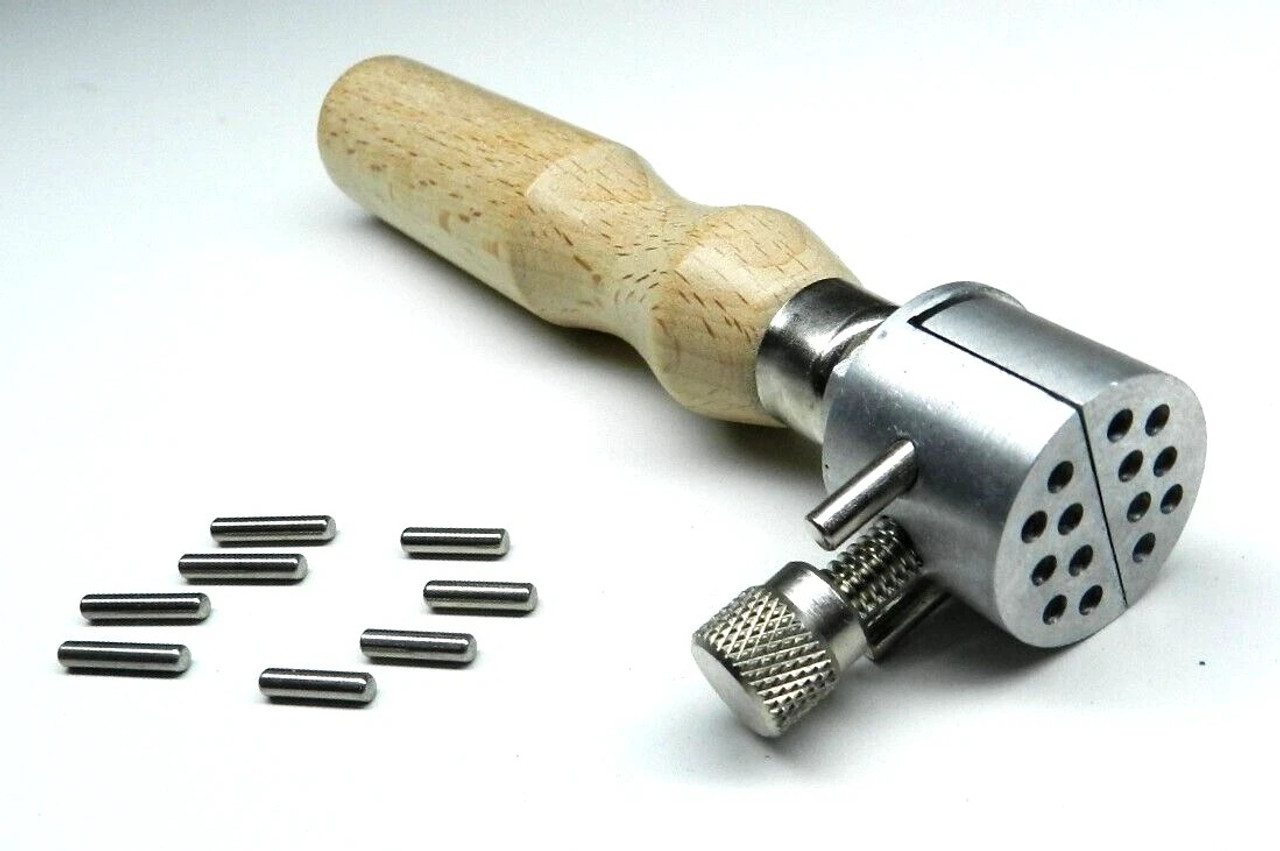

Note: Peg Clamp comes with a contoured wooden handle and has a metal tightening knurled knob. Peg Clamp head is made of Aluminum and is fastened to a wooden handle with threaded screw - the aluminum work holder portion can be removed from the handle to use in a vise.
Specifications:
- Work Holder Head Diameter: 1" - 27mm
- Work Holder Holes Depth: 33/128" / 6.46mm
- Work Holder Metal Pins Diameter: 1/8" / 3.15mm
- Work Holder Metal Pins Length: 5/8" / 15mm
- Overall Length: 5-7/8" - 150mm
- Handle Length: 4-1/2" - 120mm
- Weight: 5oz
