Product Description
SET OF GASKETS 3-1/2" for PERFORATED FLASK
FOR VACUUM CASTING

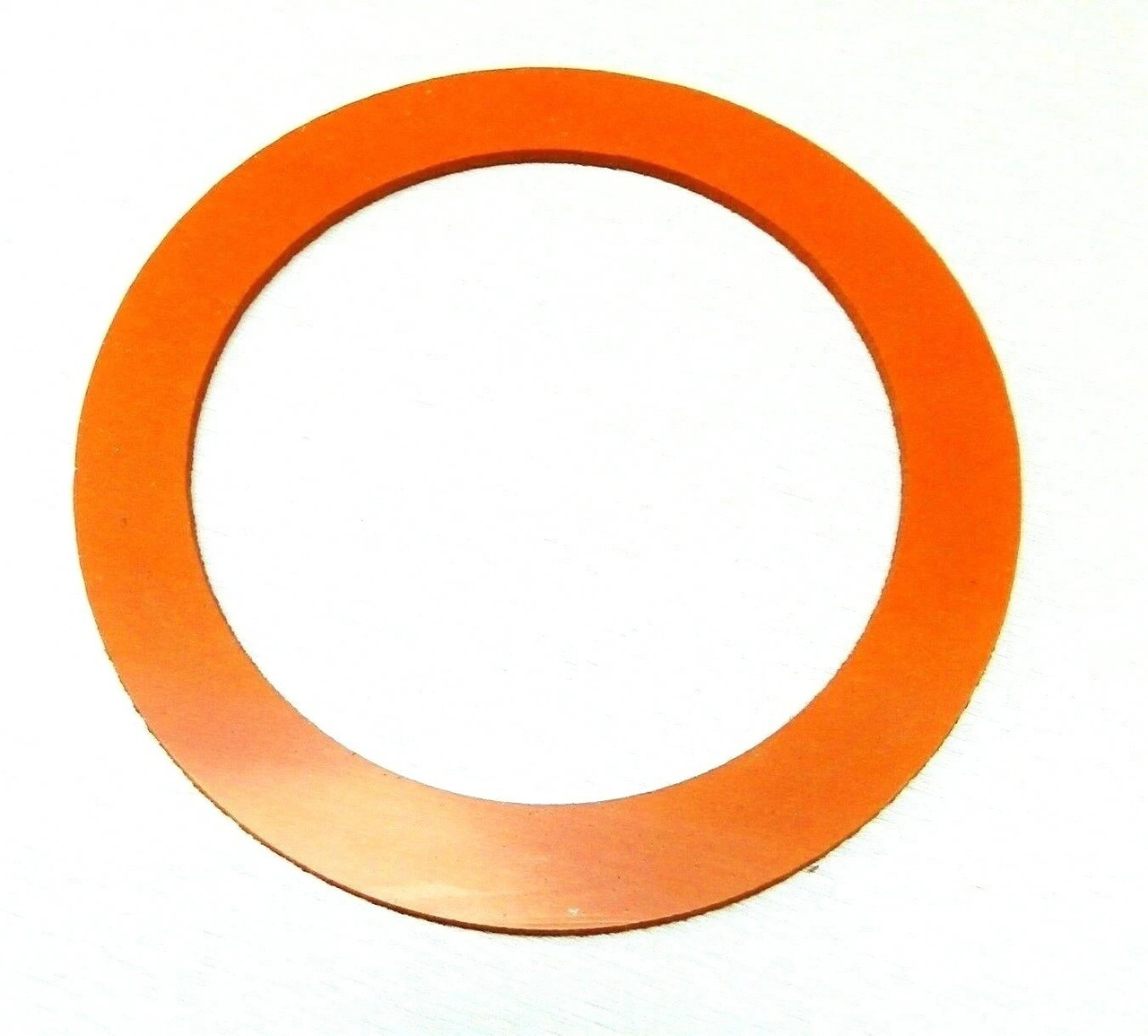

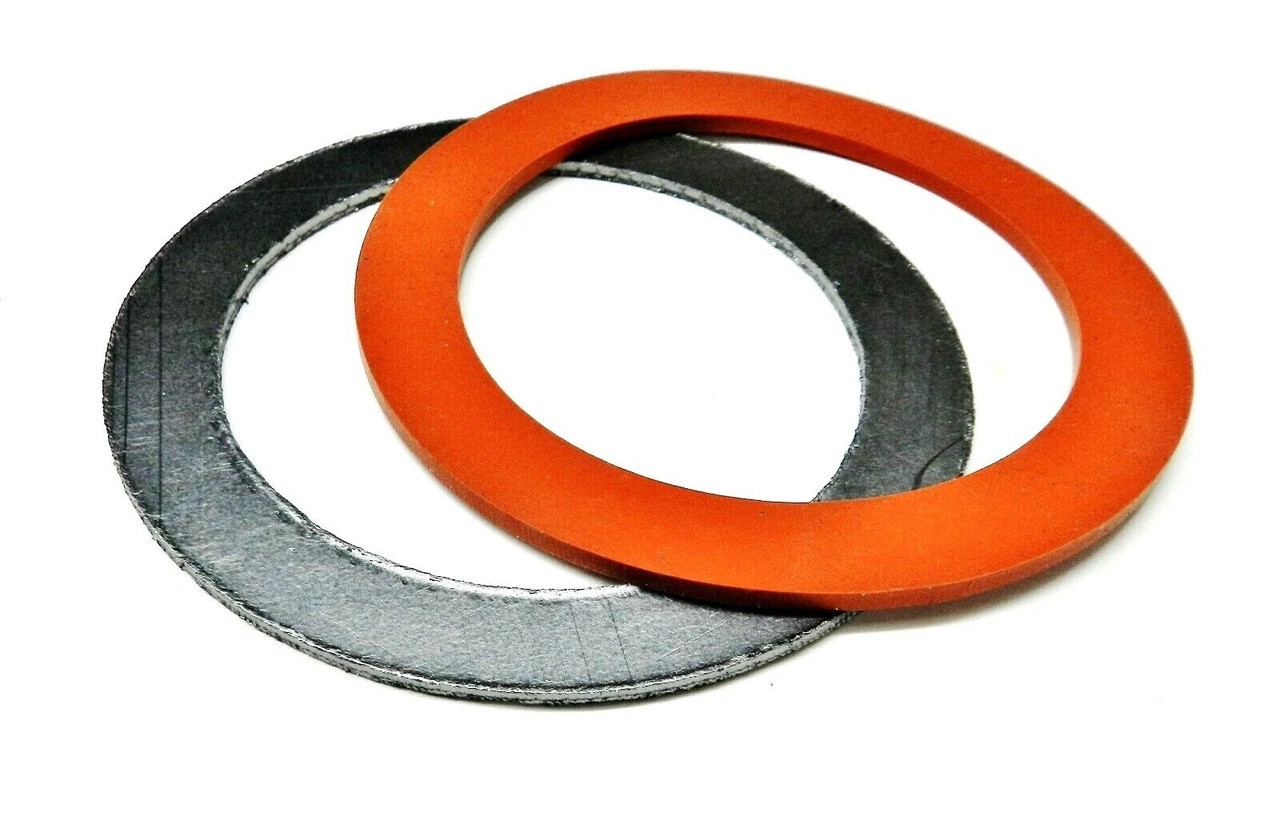

SILICONE & GRAPHITE - GASKETS FOR 3-1/2" PERFORATED FLASKS
A set of 3-1/2" gaskets... High Grade Silicone and Graphite High Temperature gaskets.
Gaskets are used together to provide the best seal during vacuum casting to seal the perforated flask ring and casting chamber.

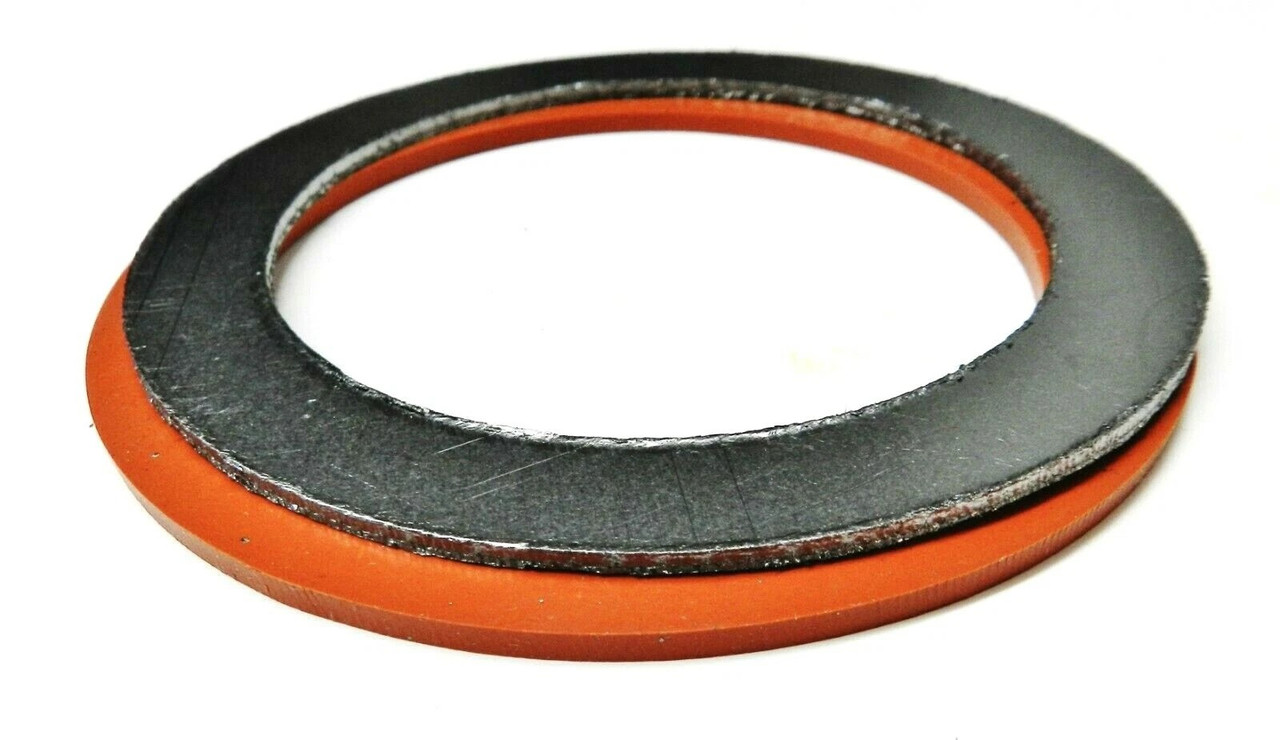

*** The Silicon acts as a sealing layer, while the graphite is placed on top of the silicone, protecting and prolonging the silicone seal from the high flask temperature.
The combination of the 2 types of gaskets provides a very good seal, allowing the vacuum to fully pull the molten metal into the flask.
These gaskets are die-cut, have a thickness of 1/8" for the Silicone and 1/16" for the Graphite.
Gaskets come in various diameters to work with individual flask OD sizes; visit our store.

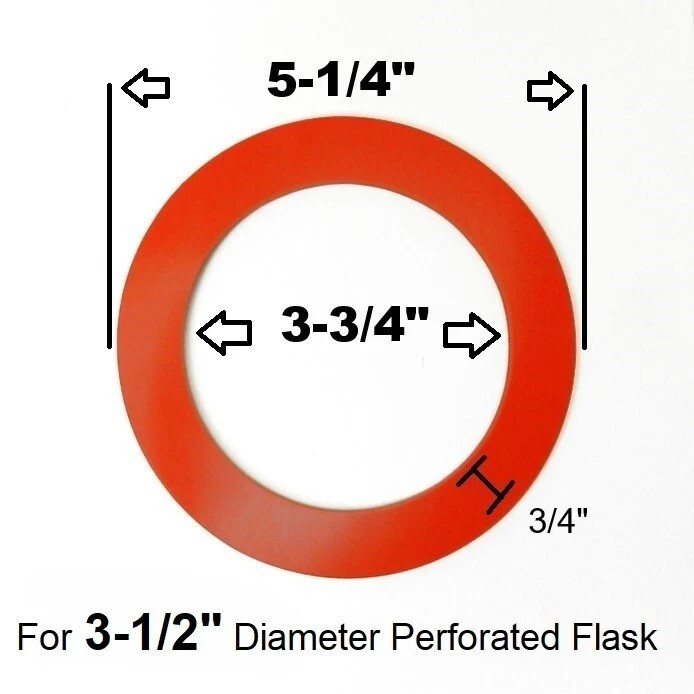

SPECIFICATIONS: JETS Product #0304-235 + 15235
-Materials: Silicon & Graphite
-Flask Diameter: 3-1/2" - 89mm
-Outside Diameter: 5-7/32" - 132.4mm
-Inside Diameter: 3-25/32" - 96mm
-Gasket Face Width: 23/32" - 18.34mm
-Thickness: Silicone 1/8" - Graphite 1/16"
Item is new, packaged - sandwiched in between cardboard to ensure safe shipping.
VERY Fragile SHOULD NOT BE BENT
Note: The Graphite gaskets will last long and can be used as long as they are handled properly… avoiding cracking or breakage. They are subject to breakage.
